UPRIGHT RESEARCH FLUORESCENT MICROSCOPE

UPRIGHT RESEARCH FLUORESCENT MICROSCOPE

UPRIGHT RESEARCH FLUORESCENT MICROSCOPE

<
FLUORESCENT RESEARCH MICROSCOPE FLUORESCENT RESEARCH MICROSCOPE
>

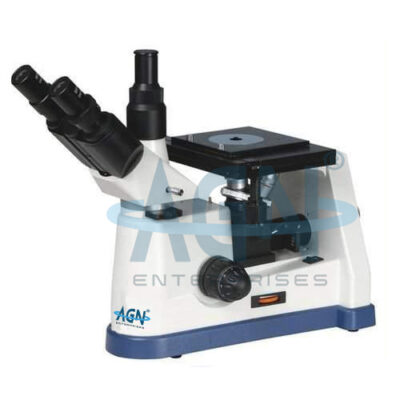

INVERTED METALLURGICAL MICROSCOPE INVERTED METALLURGICAL MICROSCOPE

Categories: ,

Model No: AGN-FRM-102 LED
Magnification 4x,10x, 40x, 100x (40x to 100x)
Model Number AGN-FRM-102 LED
Brand AGN
Optical System Color Corrected Infinity Optical System, antifungal & antireflection Coated
Observation Head Sidentoph Trinocular head inclined at 30°
Enquire Now

Shere

Technical Specifications

  • Optical System: Color-corrected infinity optical system with anti-fungal and anti-reflection coatings.
  • Magnification: 4×, 10×, 40×, 100× (40×–100× for high-power objectives).
  • Observation Head: Siedentopf trinocular head, inclined at 30°, 360° swiveling, with interpupillary distance adjustable from 48–75 mm.
  • Nosepiece: Ultra-smooth quintuple revolving nosepiece, ball-bearing type, with precise click stops and rubber grip.
  • Eyepieces: Wide-field 10× eyepiece, 22 mm FOV, anti-fungal coating.
  • Mechanical Stage: Rectangular mechanical stage, 210 × 140 mm; X/Y travel 90 × 70 mm with upper limit stopper, dual slide holder, 0.1 mm divisions, right-hand low-drive control; scratch-resistant coated surface with double specimen clips.
  • Objectives: High-contrast infinity-corrected iQVST series Plan FL objectives:
    • 4× (N.A. 0.10, W.D. 18 mm)
    • 10× (N.A. 0.25, W.D. 7 mm)
    • 40× SL (N.A. 0.65, W.D. 0.60 mm)
    • 100× SL Oil (N.A. 1.25, W.D. 0.12 mm) All objectives are anti-fungal and anti-reflection coated.
  • Condenser: Abbe condenser, N.A. 1.25, aspheric lens, iris diaphragm with frosted white filter, anti-fungal and anti-reflection coated; rack-and-pinion movement on stainless steel guides.
  • Focusing Control: Coaxial coarse and fine focusing with gear system for smooth operation; fine adjustment 0.2 mm per rotation, with upper limit stopper.
  • Illumination: Q-LED 3.3 W, 3 V LED illumination with variable intensity; lifespan up to 100,000 hours; universal input 110–240 V AC, 50/60 Hz, with built-in Ni-Cd rechargeable battery providing up to 10 hours backup.
  • Fluorescence Attachment: Reflected LED fluorescence system with blue and green filter sets.
  • Accessories: Mirror, filter holder fixed in the condenser, dust cover, cleaning cloth, 100× immersion oil, power cable, and protective styrofoam casing.
