PATHOLOGICAL BINOCULAR MICROSCOPE

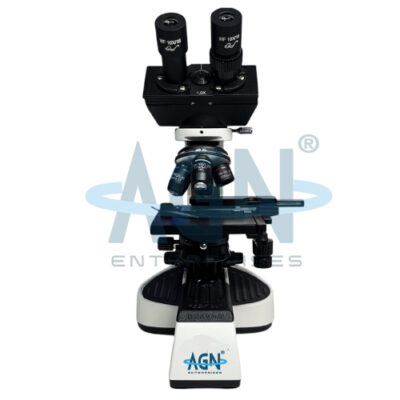

PATHOLOGICAL BINOCULAR MICROSCOPE

PATHOLOGICAL BINOCULAR MICROSCOPE

<
PATHOLOGICAL MONOCULAR MICROSCOPE PATHOLOGICAL MONOCULAR MICROSCOPE
>
PATHOLOGICAL BINOCULAR MICROSCOPE PATHOLOGICAL BINOCULAR MICROSCOPE

Categories: ,

Model No: AGN-PBM-03
Magnification 1000x
Model Number AGN-PBM-03
Brand AGN
Focusing Co-axial Coarse And Fine Focusing
Mechanical Stage 135mm x 150mm
Eyepieces Wide Field 10x, F.O.V 18mm (Optional 10x/20mm)
Power 110v-240v
Is It Portable Non-Portable
I Deal In New Only
Enquire Now

Shere

Technical Specifications

  • Optical System: Finite optical system.
  • Stand: Robust aluminium die-cast body with anti-rust protection.
  • Viewing Head: Siedentopf binocular head, inclined at 30°, rotatable 360°, with IPD range 48–75mm and diopter adjustment.
  • Eye Guards: Adjustable rubber guards for comfortable viewing.
  • Eyepieces: Wide field 10x, FOV 18mm (optional 10x/20mm), antifungal and anti-reflection coated.
  • Nosepiece: Forward quadruple revolving nosepiece with click-stop mechanism and rubber grip.
  • Magnification Range: 40x to 1000x.
  • Objectives: Semi-plan achromatic objectives 4x/0.10, 10x/0.25, 40x/0.65 (SL), 100x/1.25 oil immersion (SL).
  • Mechanical Stage: Double-plate graduated stage, size 135mm × 150mm, X/Y travel range 80mm × 55mm, with dual specimen holder clips.
  • Focusing System: Coaxial coarse and fine focusing, 0.2mm per rotation.
  • Condenser: Movable Abbe condenser, N.A. 1.25, antifungal and anti-reflection coated, aspheric lens, iris diaphragm with frosted white/blue filter.
  • Illumination: Halogen 6V-20W (up to 20,000 hours) or 3W LED (up to 100,000 hours), with adjustable intensity.
  • Power Supply: Universal 110V–240V with integrated voltage flux stabilizer.
  • Packaging: Inner thermocol/styrofoam protection with outer cardboard box.
