Torsion Apparatus Searle’s Vertical Pattern or Barton’s Apparatus

Categories: Educational Equipments

Model No: AGN-2425

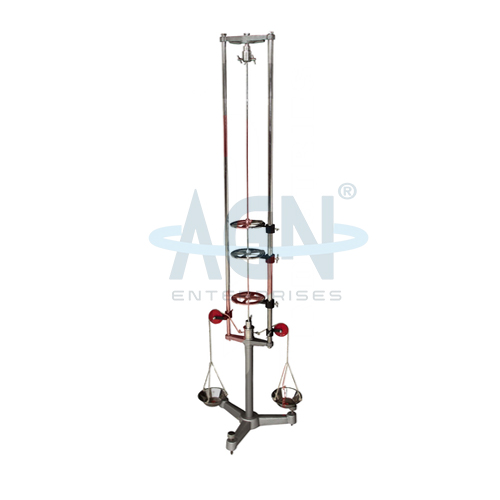

A Steel frame mounted on a heavy cast iron base with leveling screws. Upper end of the rod (under test) 900mm length and 5mm dia is clamped by a 3-jaw chuck and the lower end is clamped into the axis of a torsional drum which can be rotated by putting load in the scale pan passing over two frictionless pulleys. Freely sliding three circular scales graduated in single degrees can be clamped at any position. Three pointers for clamping to the test rod are provided. Complete with three other rods, strings and two scale pans, but without weights.

Shere

Technical Specifications

Frame & Base:
- Steel frame mounted on a heavy cast iron base with leveling screws for stable setup.
Test Rod:
- Length: 900 mm; Diameter: 5 mm.
- Upper end clamped with a 3-jaw chuck.
- Lower end clamped into the axis of a torsional drum.
Torsion Drum & Load Application:
- Drum rotated by applying load via a scale pan passing over two frictionless pulleys.
Angular Measurement:
- Three freely sliding circular scales, graduated in single degrees, can be clamped at any position.
- Three pointers provided for clamping to the test rod for precise readings.
Accessories:
- Complete with three additional rods, strings, and two scale pans.
- Supplied without weights.
