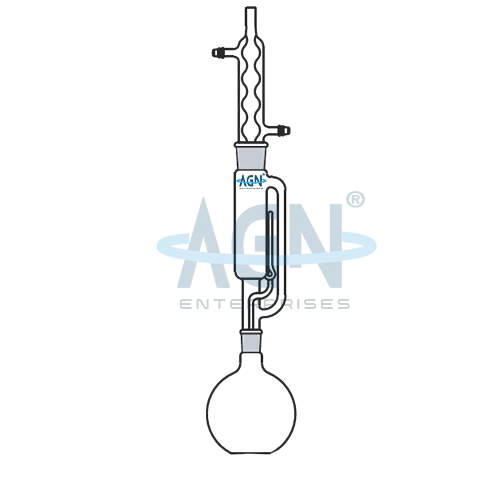

Soxhlet Extraction Apparatus with Flask

Soxhlet Extraction Apparatus with Flask

Categories:

Model No: AGN-1514
Soxhlet extraction apparatus is a laboratory device used for the efficient extraction of a soluble compound from a solid material using a solvent. It allows continuous washing of the solid sample with fresh solvent, ensuring exhaustive extraction without requiring large volumes of solvent.

Shere

Technical Specifications

  • Designed for continuous extraction of soluble compounds from solid samples using a solvent
  • Comprises three main parts: boiling flask, Soxhlet extractor body, and condenser
  • Made of borosilicate glass for thermal and chemical resistance
  • Uses refluxing solvent vapors to repeatedly wash the solid sample in a thimble
  • Provides efficient and exhaustive extraction by cycling fresh solvent over the sample
  • Available in various sizes to accommodate different sample volumes
  • Equipped with standard ground glass joints for secure, leak-free assembly
  • Compatible with heating mantles, water baths, or oil baths for controlled heating
  • Ideal for extracting lipids, essential oils, alkaloids, and pollutants from solids

Cat. No. Extractor Capacity (ml) Socket Size (Extractor) Cone Size (Extractor) Flask Capacity (R.B./F.B.) ml
1514/1 20 B 24 B 19 50
1514/2 40 B 29 B 24 100
1514/3 60 B 34 B 24 150
1514/4 100 B 34 B 24 250
1514/5 100 B 40 B 24 250
1514/6 200 B 50 B 24 500
1514/7 400 B 50 B 24 1000
1514/8 600 B 50 B 24 2000
1514/9 1000 B 55 B 34 3000
1514/10 2000 B 55 B 34 5000
1514/11 3000 B 55 B 34 10000
