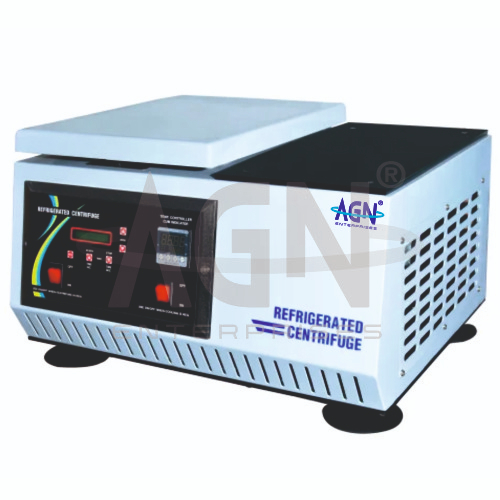

Refrigerated Universal Centrifuge Brushless, Premium Model

Model No: AGN-70CM
Premium Benchtop Refrigerated Universal Centrifuge is equipped with a maintenance-free brushless motor (model T-70BL) that operates without carbon brushes, offering enhanced durability and quiet operation. The centrifuge reaches a maximum speed of 20,000 rpm when fitted with a 12 x 2 ml angle rotor head, with speed varying depending on the rotor used. It features an advanced microprocessor-based digital control system for precision and ease of use.

Shere

Technical Specifications

  • Premium Brushless Motor: Maintenance-free, brushless motor (AGN-70CM) providing reliable and quiet operation without carbon brushes.
  • Maximum Speed: Up to 20,000 rpm with 12 x 2 ml angle rotor head; speed varies based on rotor type.
  • Advanced Digital Display: Microprocessor-based 4-line, 20-character LCD panel showing countdown timer (1 to 99 minutes), digital RPM, and RCF readings.
  • Programmable Speed Controller: Enables accurate speed setting tailored to specific centrifugation protocols.
  • Temperature Control: Standby temperature range from -20°C to +40°C controlled by a microprocessor-based digital temperature controller and indicator, maintaining optimal sample conditions.
  • Benchtop Design: Compact and user-friendly, suitable for a variety of laboratory applications requiring high-speed centrifugation.
Rotor Head Options for AGN-70CM (Extra Cost – Customer Selection Required)
Rotor Type Capacity Max Speed
Angle Rotor 12 x 1.5/2.2 ml with adapters 20,000 rpm
Angle Rotor 24 x 1.5/2.2 ml 16,000 rpm
Angle Rotor 8 x 15 ml 13,000 rpm
Angle Rotor 6 x 50 ml 13,000 rpm
Angle Rotor 4 x 100 ml 13,000 rpm
Angle Rotor (PCR strip tubes) 4 strips of 8 x 0.2 ml (32 tubes) 13,000 rpm
