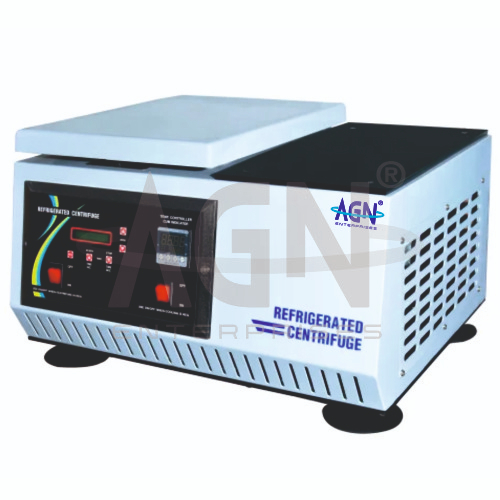

Refrigerated Universal Centrifuge Brushless Floor Model With Touch Screen

‹ Refrigerated Universal Centrifuge Brushless Floor Model › Refrigerated Universal Centrifuge Brushless, Premium Model

Categories: Centrifuge, Laboratory Instruments

Model No: AGN-100CM

Premium Floor-Standing Refrigerated Universal Centrifuge is equipped with a maintenance-free brushless motor and advanced PLC-based control system. Designed for high-performance applications, it achieves speeds up to 20,000 rpm with a 12 x 1.5/2 ml angle rotor, though maximum speed varies depending on the rotor used. The user interface features a colored PLC-based touch screen for intuitive operation and precise control.

Technical Specifications

Brushless Motor: Maintenance-free, premium brushless motor for quiet, reliable operation without carbon brushes.
Maximum Speed: Up to 20,000 rpm with 12 x 1.5/2 ml angle rotor; speed depends on rotor type.
Touch Screen Display: PLC-based colored touch screen featuring digital countdown timer (1 to 99 minutes), digital RPM, and RCF meter.
Programmable Speed Controller: Enables accurate speed settings tailored to various sample types and protocols.
Temperature Control: Standby temperature range from -10°C to +40°C managed by a microprocessor-based digital temperature controller and indicator.
Robust Floor Model: Suitable for laboratories requiring high-capacity and stable centrifugation performance.

Rotor Head Options for AGN-100CM (Extra Cost) Angle Rotor Heads (with Polypropylene Conical Tubes)

Rotor Type	Capacity	Container Type	Speed (RPM)	RCF (g)
Angle Rotor	12 x 1.5/2 ml	Plastic	20,000	37,570
4 Angle Rotor	6 x 200 ml	Plastic	7,000	7,400
4 Angle Rotor	4 x 500 ml	Plastic	7,000	7,400
4 Angle Rotor	8 x 100 ml	Plastic	7,000	7,400
4 Angle Rotor	12 x 50 ml	Plastic	7,000	7,400
4 Angle Rotor	36 x 15 ml	Plastic	7,000	7,400
4 Angle Rotor	4 x 100 ml	Plastic	14,500	23,980
4 Angle Rotor	8 x 25 ml	Plastic	17,000	31,150
4 Angle Rotor	12 x 15 ml	Plastic	18,000	31,150
4 Angle Rotor	8 x 50 ml	Plastic	13,000	30,020
4 Angle Rotor	24 x 1.5 ml	Plastic	20,000	37,570
4 Angle Rotor	8 Strips of 8 x 0.2 ml	Plastic	11,000	12,180

Swing Out Rotor Heads

Rotor Type	Capacity	Container Type	Speed (RPM)	RCF (g)
4 Swing Out Rotor Head	4 x 200 ml	Plastic	4,500	3,500
4 Swing Out Rotor Head	4 x 250 ml	Plastic	4,500	3,500
4 Swing Out Rotor Head	108 x 5 ml	Plastic	4,500	3,500
4 Swing Out Rotor Head	16 x 50 ml	Falcon	4,500	3,500
4 Swing Out Rotor Head	32 x 15 ml	Falcon	4,500	3,500
4 Swing Out Rotor Head	2 Plates of 96 wells	—	3,000	—
4 Swing Out Rotor Head	6 Plates of 96 wells	—	3,000	—
