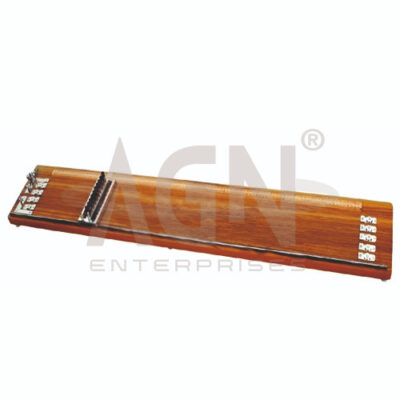

Potentiometer 10-wire with Pencil Jockey

Potentiometer 10-wire with Pencil Jockey

Categories: ,

Model No: AGN-1032
Mounted on a polished 18mm thick ply wooden board with teak wood colour sunmica on top, with 10 wires of SWG 24 connected in series, clamped under heavy Brass strips of SWG 18 and fitted by screws in such a manner so that it is easily replaceable and has negligible ‘END ERRORS’. Overall dimension: 1.15mm × 175mm×50mm high including terminals. Supplied with pencil jockey along with lead for connections & detailed working manual.
Enquire Now

Shere

Technical Specifications

  1. Wire Configuration:
    • Comprises 10 wires of 24 SWG, connected in series.
    • Wires are clamped under heavy brass strips of 18 SWG and fixed with screws.
    • Designed for easy replacement and negligible end errors.
  2. Mounting & Board:
    • Mounted on a polished 18 mm thick ply wooden board.
    • Board surface finished with teak wood colour sunmica for durability and aesthetics.
  3. Dimensions:
    • Overall size: 1.15 m × 175 mm × 50 mm (height including terminals).
  4. Accessories & Documentation:
    • Supplied complete with Pencil Jockey, connecting leads, and a detailed working manual.
