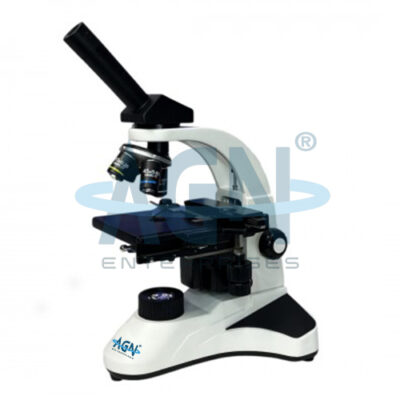

PATHOLOGICAL MONOCULAR MICROSCOPE

Categories: MICROSCOPES, Pathological Laboratory Microscopes

Magnification	40x
Model Number	AGN-PMM-05
Brand	AGN
Focusing	Separate Fine Focusing With 0.2mm/rotation
Light Source	3W LED Light
Eyepieces	Wide Field 10x, F.O.V 18mm (Optional 10x/20mm)
Power	110v-240v
Is It Portable	Non-Portable
Weight	5KG

Optical System: Finite optical system.
Stand: Aluminium die-cast body with anti-rust protection.
Viewing Head: Monocular head, inclined at 45°, rotatable 360°, with IPD range 48–75mm.
Eye Guards: Adjustable rubber eye guards for comfortable viewing.
Eyepieces: Wide field 10x, FOV 18mm (optional 10x/20mm), antifungal and anti-reflection coated.
Nosepiece: Forward quadruple revolving nosepiece with click-stop mechanism and rubber grip.
Magnification Range: 40x to 1000x.
Objectives: Achromatic objectives 4x/0.10, 10x/0.25, 40x/0.65 (SL), 100x/1.25 oil immersion (SL).
Mechanical Stage: Single-plate graduated stage, size 135mm × 150mm, X/Y travel range 80mm × 55mm, with double specimen holder clips.
Focusing: Separate fine focusing, 0.2mm per rotation.
Condenser: Movable Abbe condenser, N.A. 1.25, antifungal and anti-reflection coated, with aspheric lens, iris diaphragm, and frosted white/blue filter.
Illumination: Halogen 6V-20W (up to 20,000 hours) or 3W LED (up to 100,000 hours) with adjustable intensity control.
Power Supply: Universal 110V–240V, integrated with voltage flux stabilizer.
Packaging: Inner thermocol/styrofoam packing with outer cardboard box.
