FULLY AUTOMATED VACCUME BASED TISSUE PROCESSOR

FULLY AUTOMATED VACCUME BASED TISSUE PROCESSOR

[product_navigation]

Categories: ,

Model No: AGN-TP-172
It is designed for efficient and rapid tissue processing in histology laboratories. It effectively removes moisture from tissue samples and replaces it with paraffin wax at an optimal rate, minimizing tissue damage caused by dehydration and shrinkage.
Enquire Now

Share

Technical Specifications

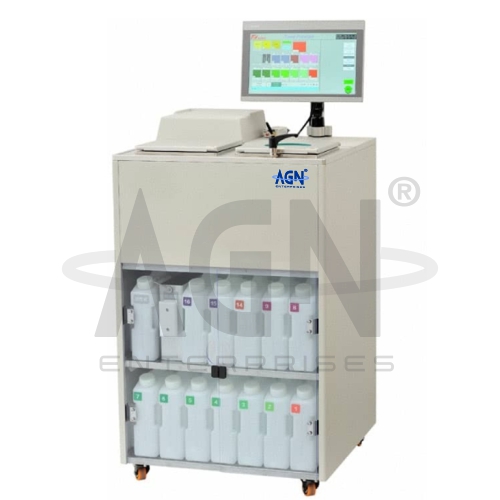

  • Floor-standing, fully enclosed automatic tissue processor designed for efficient, safe, and consistent tissue processing in histopathology laboratories.
  • Vacuum- and pressure-based processing system using xylene to ensure effective tissue penetration, clearing, and preparation for embedding.
  • Ergonomically designed control panel with foil-protected keyboard and LCD display showing all operating parameters such as program number, duration, date, time, and paraffin bath temperature.
  • Four reagent reservoirs, each with a capacity of 3 litres, for fixatives, alcohols, and clearing agents.
  • Three paraffin wax reservoirs, each of 3 litres capacity, ensuring uninterrupted wax infiltration with temperature control from 45 °C to 70 °C.
  • Integrated fume control system with provision for external alarm connection to enhance operational safety.
  • Processing delay option for flexible scheduling of tissue processing cycles.
  • Three cleaning reservoirs of 3 litres capacity for effective reagent and chamber cleaning, including paraffin cleaning.
  • Programmable memory capable of storing up to 8 processing programs and 15 solution names, with programmable processing temperature at each step.
  • Processing capacity of up to 200 cassettes, with the option to interrupt an automatic cycle for reloading or removing cassettes.
  • User-defined naming facility with storage for 8 processing programs and 15 solution names.
  • Two-level password protection system (main user and sub-user).
  • Inbuilt power backup system providing 40 minutes or more of backup time.
  • Solvent-resistant LCD/LED touchscreen display for programming and operation, showing real-time process data including date, time, completion time, time zone, and zone temperatures.
  • Automated reagent management system with capability to run rapid protocols for urgent or small biopsy samples.
  • Auto-restart function, unlimited inbuilt memory log, and integrated level sensors for reagent filling and draining.
  • Option for remote fill and drain features, along with remote service support for real-time monitoring and assistance.
  • Standard pre-programmed cleaning cycle automatically runs after each processing cycle.
  SALIENT FEATURES
  • LCD touchscreen display
  • Two-level password protection
  • Integrated fume control system
  • Inbuilt power backup system
