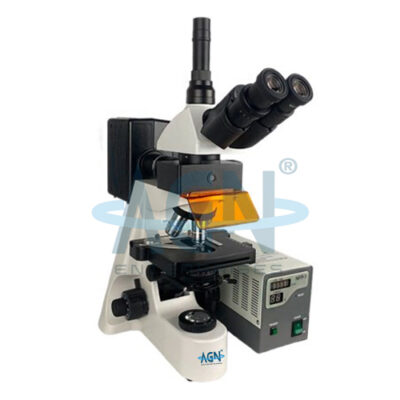

FLUORESCENCE ATTACHMENT RESEARCH TRINOCULAR MICROSCOPE

FLUORESCENCE ATTACHMENT RESEARCH TRINOCULAR MICROSCOPE

Categories: ,

Model No: AGN-FRM-700
Magnification 1000x
Model Number AGN-FRM-700
Brand AGN
Illumination 3W LED Light
Focusing Coaxial Coarse and Fine Focusing
Mechanical Stage 235mm X 150mm
Is It Portable Non-Portable
Enquire Now

Shere

Technical Specifications

  • Optical System: Infinity-corrected optical system.
  • Stand: Robust Y-shaped, single-mold aluminum die-cast stand with anti-rust protection.
  • Viewing Head: Siedentopf trinocular head, 30° inclined, 360° rotatable, with interpupillary distance (IPD) 48–75 mm and diopter adjustment.
  • Eye Guards: Adjustable rubber eye guards for comfortable observation.
  • Eyepieces: Widefield 10× eyepieces, FOV 22 mm, ±5 diopter adjustment, with anti-fungal and anti-reflection coatings.
  • Nosepiece: Inward-facing quintuple nosepiece with coded feature, click-stop mechanism, and rubber grip.
  • Objectives: Infinity Plan Achromatic objectives: 4×/0.10, 10×/0.25, 40×/0.65 (SL), 100×/1.25 Oil (SL); optional 2× and 20×/0.50.
  • Mechanical Stage: Double-plate graduated stage (235 mm × 150 mm) with X/Y travel of 78 mm × 54 mm, rackless design, scratch-resistant surface, and dual specimen holder clips.
  • Focusing: Coaxial coarse and fine focusing with fine adjustment scale of 0.002 mm.
  • Condenser: Movable Abbe condenser, N.A. 1.25, anti-fungal and anti-reflection, aspheric lens, iris diaphragm with frosted white/blue filters.
  • Illumination: 3 W LED illumination (up to 100,000 hours) with adjustable intensity control.
  • Display: LCD screen showing magnification, sleep timer, brightness level, lock status, and other indicators.
  • Power Supply: Universal 110–240 V power input with integrated voltage stabilizer.
  • Packaging: Inner thermocol/styrofoam padding and outer cardboard box for safe transport.
