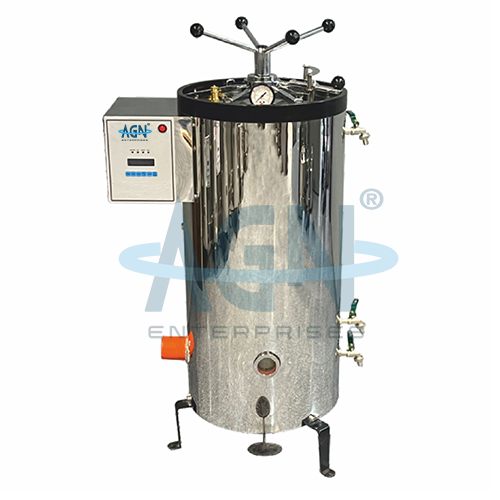

VERTICAL TRIPLE WALLED RADIAL LOCKING AUTOCLAVE FULLY S.S

[product_navigation]

Categories: Autoclave, Laboratory Instruments

Model No: AGN-803

The Vertical Triple Walled Radial Locking Autoclave is a fully stainless steel, high-performance sterilization unit designed for medical, laboratory, and industrial use. Its triple-walled construction ensures superior heat retention and energy efficiency, while the radial locking lid guarantees user safety. With optional semi-automatic or fully automatic control systems, this autoclave provides precise, reliable sterilization for a variety of instruments and materials. Robust construction, advanced safety features, and digital controls make it ideal for demanding sterilization requirements.

Technical Specifications

Construction:
- Inner chamber, jacket, outer chamber, and support ring made of stainless steel (SS 304).
- Heater cover, stand, carrier/bucket, and top lid made of thick machined stainless steel.
- All internal joints argon arc welded, ground, and polished for crevice-free, hygienic operation.
- Moulded, joint-less silicon rubber gasket for leak-proof sealing.
Lid & Safety:
- Radial locking lid for secure operation.
- Equipped with pressure gauge, spring-loaded safety valve, double safety valve, manual exhaust valve, vacuum breaker, and water level indicator.
- Drain valve for easy cleaning.
Electrical & Controls:
- Miniature circuit breaker for mains ON/OFF and control panel safety.
- Industrial-grade, energy-efficient heaters reduce power consumption.
Optional Semi-Automatic Features:
- Automatic pressure control switch.
- Automatic low water cut-off system.
- Microprocessor-based digital temperature indicator/controller with set value, process valve, and digital timer.
Optional Fully Automatic Features:
- Automatic low water cut-off system and pressure control switch.
- Control: ON/OFF/T.P.
- PT-100 Pressure Sensor for chamber.
- User-settable purging range and post-sterilization drying time.
- User-settable boiler control.
- High/low alarm buzzer and process end indicator.
- Pressure display and inbuilt sterilization cycle process.

Specifications:

Working Pressure: 15–20 PSI
Working Temperature: 121–125°C
Power Supply: 220–230V AC, 50/60 Hz
Pressure Vessel: SS 304 Grade
Tested up to: 40 PSI
Top Lid: SS 304 Grade Stainless Steel
External Wall: SS 304 Grade Stainless Steel
Basket: High-Grade Stainless Steel

Dimension (inch)	10 × 18	12 × 22	14 × 22	16 × 24	18 × 24	22 × 30
Inner Dimension (mm)	250 × 450	300 × 550	350 × 550	400 × 600	450 × 600	550 × 750
Capacity	22 Liters	40 Liters	50 Liters	78 Liters	98 Liters	180 Liters
Heater Load	1.5 KW	2 KW	3 KW	4 KW	4 KW	6 KW
