VERTICAL DOUBLE WALLED RADIAL LOCKING AUTOCLAVE FULLY S.S

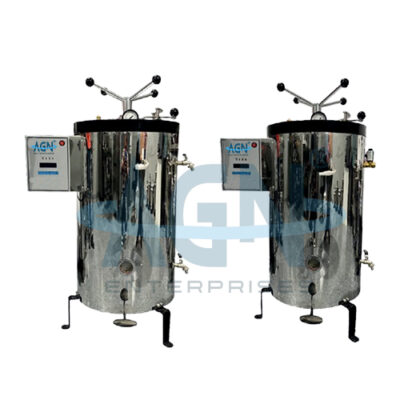

‹ TABLE TOP AUTOCLAVE CLASS B › VERTICAL DOUBLE WALLED RADIAL LOCKING AUTOCLAVE S.S. LINING

Categories: Autoclave, Laboratory Instruments

Model No: AGN-802

It is is a high-performance, fully stainless-steel sterilization unit designed for medical, laboratory, and industrial applications. The autoclave features a radial locking lid for maximum user safety and ensures efficient sterilization with advanced safety mechanisms. Its robust construction, precision engineering, and optional semi-automatic or fully automatic controls make it suitable for diverse sterilization needs, providing reliability, energy efficiency, and ease of operation.

Technical Specifications

Construction:
- Inner chamber, outer chamber, and support ring made of stainless steel (SS 304).
- Heater cover, stand, carrier/bucket, and top lid made of thick machined stainless steel.
- All internal joints argon arc welded, ground, and polished for crevice-free internals.
- Moulded joint-less silicon rubber gasket for leak-proof operation.
Lid & Safety:
- Radial locking lid ensures safe and secure closure.
- Equipped with pressure gauge, spring-loaded safety valve, double safety valve, manual exhaust valve, vacuum breaker, and water level indicator.
- Drain valve facilitates easy chamber cleaning.
Electrical & Controls:
- Miniature circuit breaker for mains ON/OFF and control panel safety.
- Efficient heaters reduce power consumption.
Optional Semi-Automatic Features:
- Automatic pressure control switch.
- Automatic low water cut-off system.
- Microprocessor-based digital temperature indicator/controller with set value, process valve, and digital timer.
Optional Fully Automatic Features:
- Automatic low water cut-off system and pressure control switch.
- Control: ON/OFF/T.P.
- PT-100 Pressure Sensor for chamber.
- User-settable purging range and post-sterilization drying time.
- User-settable boiler control.
- Buzzer for high/low alarm and process end.
- Pressure display and inbuilt sterilization cycle process.

Specifications:

Working Pressure: 15–20 PSI
Working Temperature: 121–125°C
Power Supply: 220–230V AC, 50/60 Hz
Pressure Vessel: SS 304 Grade
Tested up to: 40 PSI
Top Lid: SS 304 Grade
External Wall: SS 304 Grade
Basket: High-Grade Stainless Steel

Dimension (inch)	Inner Dimension (mm)	Capacity	Heater Load
10 × 18	250 × 450	22 Liters	1.5 KW
12 × 22	300 × 550	40 Liters	2 KW
14 × 22	350 × 550	50 Liters	3 KW
16 × 24	400 × 600	78 Liters	4 KW
18 × 24	450 × 600	98 Liters	4 KW
22 × 30	550 × 750	180 Liters	6 KW
