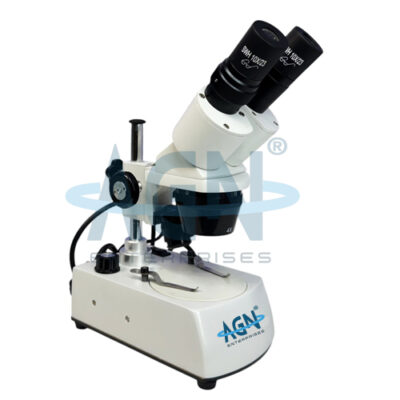

STEREO ZOOM MICROSCOPE

STEREO ZOOM MICROSCOPE

STEREO ZOOM MICROSCOPE

Categories: ,

Model No: AGN-SZM-QSZ-818
Magnification Range7.5x – 135x
Model NumberAGN-SZM-QSZ-818
BrandAGN
Is It PortableNon-Portable
Focusing MechanismManual Coarse Focus Range: +-90mm
EyepieceWF10x/23mm, Diopter Adjustable, Paired
Enquire Now

Share

Technical Specifications

Optical & Mechanical Specifications
  • Optical System: Parallel zoom apochromatic optical system.
  • Zoom Ratio: 1:18.
  • Magnification Range: 7.5× – 135×.
Observation Functions
  • Bright Field (BF)
  • Fluorescence (FL)
  • Polarized Light (PL)
  • Oblique Light (OL)
Head Configuration
  • Trinocular Head: 20° inclined, light split E100:P0 / E0:P100
  • Optional Head: Tilting trinocular head (0°–30° inclination), light split E100:P0 / E50:P50
Illumination Support
  • Cold light power supply
  • Optical fiber
  • Coaxial episcopic illuminator
Eyepiece
  • WF10x/23 mm, diopter adjustable, paired.
Objective
  • Plan APO 1.0x, numerical aperture 0.15, working distance 60 mm.
Focusing Mechanism
  • Manual coarse focus with ±90 mm range.
Stand
  • LED 3D lighting base with built-in OCC illumination.
Coaxial Illumination
  • Supports cold light power supply, optical fiber, and coaxial episcopic illuminator.
Optional Epi-Fluorescent Attachment
  • 6-hole turret illumination system
  • Fluorescent incident illuminator
  • Light shading plate
  • 4-band LED fluorescence light sources with control box
  • 1/4λ plate
  • Bright field cube
Packaging
  • Inner thermocol/styrofoam protection with outer cardboard box.
