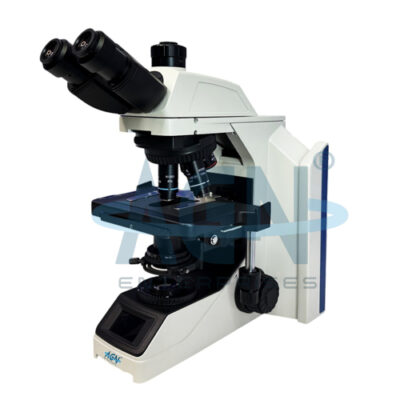

RESEARCH TRINOCULAR MICROSCOPE

Categories: MICROSCOPES, Research Microscopes

Optical System: Infinity optical system.
Stand: Strong Y-shaped aluminium die-cast stand, single-mould construction with anti-rust finish.
Viewing Head: Siedentopf trinocular head, 30° inclined, 360° rotatable; interpupillary distance (IPD) 48–75 mm with diopter adjustment.
Eye Guards: Adjustable rubber eye guards for user comfort.
Eyepieces: Wide-field 10x eyepieces, F.O.V 22 mm, with ±5 diopter adjustment; antifungal and anti-reflective coated.
Nosepiece: Inward-facing quintuple revolving nosepiece with click-stop mechanism and rubber grip.
Objectives: Infinity plan achromatic objectives – 4x/0.10, 10x/0.25, 20x/0.40, 40x/0.65 (SL), 100x/1.25 oil (SL).
Magnification Range: 40x to 1000x.
Mechanical Stage: Graduated double-plate stage (190 mm × 170 mm) with X/Y travel of 80 mm × 50 mm; rackless, scratch-resistant, with dual specimen holder clips.
Focusing: Coaxial coarse and fine focusing, fine adjustment scale value 0.002 mm.
Condenser: Movable Abbe condenser, N.A. 1.25; antifungal and anti-reflective with aspheric lens, iris diaphragm, and frosted white/blue filter.
Illumination: 5 W LED light, DC 12 V 2A (up to 100,000 hours) with intensity control.
Power Supply: Universal 110–240 V with built-in voltage stabilizer.
Packaging: Protected by inner thermocol/styrofoam and outer cardboard box.
