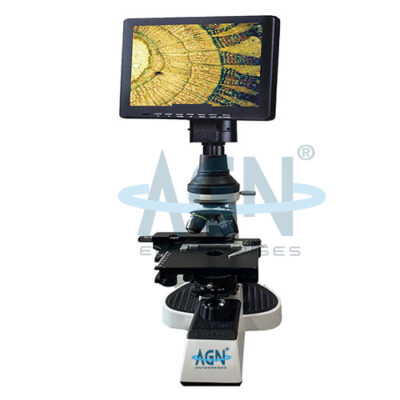

DIGITAL MICROSCOPE

DIGITAL MICROSCOPE

DIGITAL MICROSCOPE

Categories: ,

Model No: AGN-DM-PRIME
Display  12.2″ TFT, IPS Touch Screen, 360˚ Rotatable
Camera  Built in Camera with ULTRACAM 5.0 MP Resolution
Model Number AGN-DM-PRIME
Brand AGN
Software  Pre-loaded Capture and Measurement Software
Magnification 40x to 1000x visual magnification.
Observation Head sidentopf Binocular or Trinocular head, 30O inclined, 360O rotatable.
Objectives  DIN PLAN Achromatic objectives 4X, 10X, 40X ,100X
Enquire Now

Share

Technical Specifications

Key Features
  • Display: 12.2″ TFT, IPS Touch Screen, 360˚ Rotatable
  • Camera: Built-in ULTRACAM, 5.0 MP Resolution
  • Software: Pre-loaded Capture & Measurement Software
  • Connectivity: Bluetooth 4.0
  • Battery: Li-ion, Up to 8 Hours Backup
  • Operating System: Windows 10 Home
  • Memory: 4GB RAM, 64GB eMMC + 64GB microSD Card
  • I/O Ports: USB 3.0 × 1, Mini-HDMI × 1, microSD Slot × 1
  Technical Specifications
  • Optical System: High-contrast finite colour-corrected Optical System
  • Magnification: 40x – 1000x Visual Magnification
  • Stand: Aluminum Die-cast Stand with Hand Rests for Comfort & Stability
  • Observation Head: Sidentopf Trinocular Head, 30° Inclined, 360° Rotatable, Interpupillary Distance 50–75mm, Dual Dioptric Adjustment
  • Eyepieces: Widefield 10x/18mm, Anti-fungal & Anti-reflection, Hard Coated
  • Nosepiece: Reverse Angle Quadruple Nosepiece (Ball Bearing Type) with Precise Click Stops
  • Objectives: QUSP Series High-contrast Flat-field DIN PLAN Achromatic Objectives
    • 4x
    • 10x
    • 40x (Spring-loaded)
    • 100x (Spring-loaded, Oil Immersion) All antifungal & anti-reflection hard coated
  • Mechanical Stage: Rackless X-axis, Double Plate Stage (190 × 140mm), X/Y Travel 90 × 65mm, Low Drive Right-hand Controls, Scratch-resistant Hard Coated Surface, Double Specimen Holder Clip
  • Condenser: Sub-stage Abbe Condenser NA 1.25 with Iris Diaphragm, Frosted White/Blue Filter, Antifungal & Anti-reflection Coated, Rack & Pinion Movement on Stainless Steel Guides
  • Focusing Control: Co-axial Coarse & Fine Focusing on Precision Gear System, Fine Adjustment 0.2mm/rotation, Max. 2 Micron Scale Increment
  • Illumination:
    • Halogen 6V–20W (up to 2,000 hrs life)
    • LED 3W (up to 100,000 hrs life) Both with Variable Illumination Control
  • Electronics: Universal Input 100V–240V AC, 50/60Hz, Built-in Voltage Stabilizer
  • Package Contents: Power Cable (5ft), Immersion Oil, Spare Bulb (Halogen only), Nylon Dust Cover, Cleaning Cloth
Optional Accessories
  • Pointers & Micrometer Reticules
  • Infinity Corrected Optics
  • Phase Contrast, Polarising, Fluorescence & Dark Field Kits
  • Quintuple Nosepiece
  • Application-specific Objectives & Eyepieces
  • Digital Cameras (3MP, 9MP, 10MP, 14MP) with Adaptors
  • Battery Backup (6–7 Hours)
  • Wooden Storage Box
