STUDENT MICROSCOPE

STUDENT MICROSCOPE

<

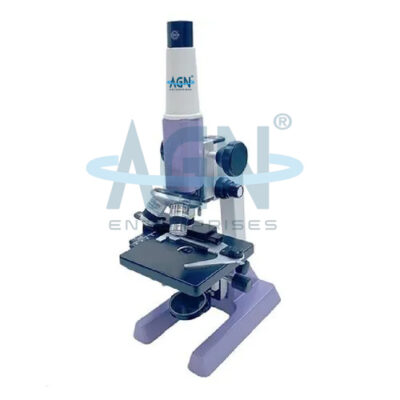

MEDICAL STUDENT MICROSCOPE MEDICAL STUDENT MICROSCOPE
>
STUDENT MICROSCOPE STUDENT MICROSCOPE

Categories: ,

Model No: AGN-SM-05
Magnification 100x
Model Number AGN-SM-05
Brand AGN
Mechanical Stage 120mm x 120mm
Objectives Achromatic
Viewing Head Monocular
Enquire Now

Shere

Technical Specifications

Optical System:
  • Finite System
Stand:
  • Aluminium die-cast stand (anti-rust body)
Viewing Head:
  • Monocular, tube length 160mm
  • 90° inclined head
Eyepieces:
  • Wide Field 10x, F.O.V. 16mm
  • Or set of 10x & 15x Huygenian eyepieces
  • Antifungal & anti-reflection coated
Nosepiece:
  • Forward triple revolving nosepiece
  • Click-stop mechanism with rubber grip
Magnification:
  • 100x to 450x
Objectives:
  • Achromatic 10x/0.25
  • Achromatic 40x/0.65 or 45x/0.65
Mechanical Stage:
  • Stage size: 120mm × 120mm
  • High-quality stainless steel stage clips for holding slides
Focusing:
  • Vertical movement of the observation tube
  • Coarse adjustment: rack & pinion mechanism
  • Fine adjustment: screw lever mechanism
Condenser:
  • Fixed Abbe condenser, N.A. 1.25
  • Antifungal, anti-reflection with aspheric lens
  • Iris diaphragm
  • Swing-out filter holder with frosted white/blue filter
Illumination:
  • Plano-concave mirror or 1W LED light (up to 20,000 working hours)
Packaging:
  • Inner thermocol/styrofoam packing
  • Outer cardboard box
