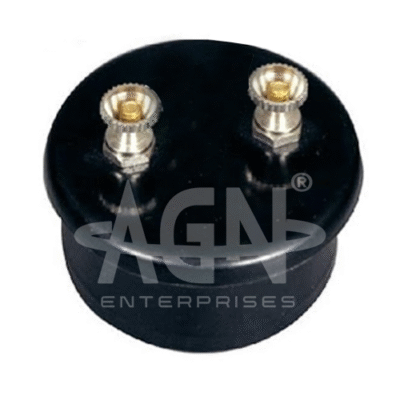

Standard Resistance

Standard Resistance

Model No: AGN-657
Resistances incorporate the latest design and can carry comparatively large currents without being heated. The resistances are immersed in moisture free and non-corrosive oil contained in metal vessels. Manganin coils are used which are thoroughly aged. Silver soldered connections are used. Standard resistances of 0.1, 0.01 and 0.001 ohm are provided with 4 terminals while those of 1,10,100,1000 ohms are provided

Shere

Technical Specifications

Type Resistance (in ohms) Max current (in Amp.) Accuracy (in %)
a) 0.001 10 0.05
b) 0.01 10 0.05
c) 0.1 5 0.05
d) 1 3 0.01
e) 10 1 0.005
f) 100 0.5 0.005
g) 1000 0.2 0.005
