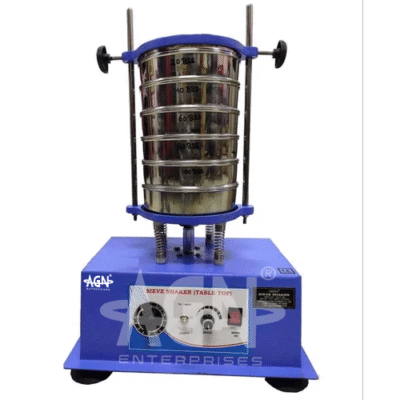

SIEVE SHAKER GYRATORY

Categories: Laboratory Instruments, Shaking Machine

Model No: AGN-137C

This unit is designed to accommodate up to 7 test sieves of 8-inch diameter. It is powered by a ½ HP electric motor connected through a reduction gear mechanism to provide controlled and consistent motion. The sieve table does not rotate but is inclined from the vertical axis, producing a gyratory motion that effectively circulates material across the sieve surface. Additionally, a vertical (upward and downward) movement is integrated into the action, ensuring maximum utilization of the entire sieve area and enhancing separation efficiency.

Shere

Technical Specifications

Capacity: Holds up to 7 sieves of 8″ diameter
Motion: Gyratory plus vertical (up-down) movement for efficient sieving
Drive: ½ HP electric motor with reduction gear
Sieve Table: Inclined for optimal particle movement; non-rotating
Gear Housing: Enclosed in an oil bath for longevity and smooth operation
Power Supply: Operates on 220/230V AC, 50Hz, single-phase
Construction: Rugged and reliable, suitable for continuous use
Included: Adapter for 8″ sieves (test sieves not included)
Optional : Automatic Digital Timer.
