Laboratory Instruments >

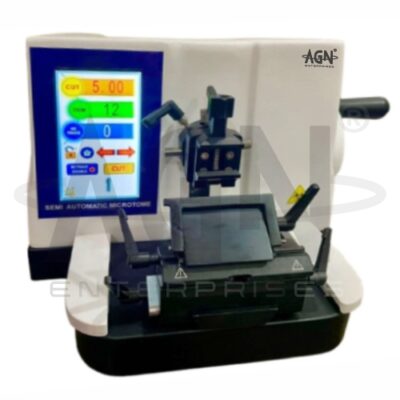

SEMI AUTOMATIC MICROTOME

Model No: AGN-SAM-190
It is ideal for clinical histology and histopathology applications. It is used to produce thin sections of specimens with varying hardness for both routine and research purposes in biology and industrial settings.

Share

Technical Specifications

The Semi Automatic Microtome from AGN Enterprises is a precision histology and pathology instrument designed for the controlled sectioning of paraffin-embedded and suitably prepared tissue specimens into thin sections for microscopic examination.

The instrument combines manual sectioning control with motor-assisted or electronically controlled specimen-feed functions, depending on the supplied configuration. This provides greater convenience and reproducibility than a completely manual microtome while retaining operator control over important stages of the sectioning process.

It is suitable for histopathology laboratories, hospitals, pathology departments, medical colleges, diagnostic laboratories, universities, research institutes, pharmaceutical laboratories, and biomedical research facilities.

  • Section thickness range: 0.5–100 µm
  • Specimen retraction during return travel: 5–100 µm in 5 µm increments
  • Horizontal specimen feed: Approx. 60 mm
  • Specimen orientation: Horizontal ±8°, Vertical ±8°, Z-axis 360°
  • Sectioning modes: 1 manual mode
  • Trimming thickness: 1–600 µm
  • Object feed: 28 mm
  • Operation: Semi-automatic
  • Maximum specimen size: 50 × 50 mm
  • Nominal voltage: 220 V, 50 Hz / 110 V, 60 Hz
  • Nominal frequency: 50–60 Hz
  • Power consumption: 150 VA
  • Dimensions: 600 × 350 × 320 mm
  • Weight: 24 kg
SALIENT FEATURES
  • Adjustable section thickness
  • Cutting and trimming modes
  • Fast forward/backward function
  • Increase/decrease section thickness feature
  • Section counter and thickness display
  • Ergonomic standard specimen clamp
  • Disposable knife holder with lateral displacement capability

Why Choose AGN Enterprises

AGN Enterprises supplies microtomes, cryostat microtomes, tissue processors, embedding equipment, slide preparation instruments, microscopes, and other histopathology laboratory equipment for hospitals, medical colleges, diagnostic laboratories, universities, and research institutes.

Our laboratory equipment supports histology, pathology, biomedical research, medical education, and routine tissue-preparation workflows.
