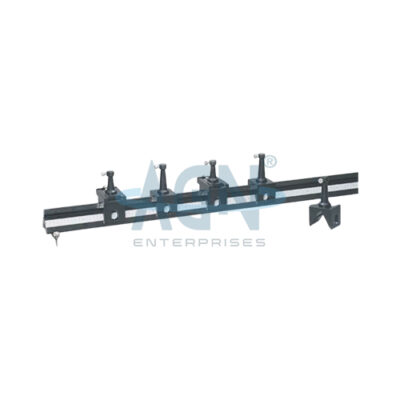

Research Optical Bench

Research Optical Bench

Research Optical Bench

Categories:

Model No: AGN-1938
The Bed is heavy cast iron with a strong control rib, throughly seasoned and aged before machining and grinding of its upper surfaces. Total length 180cm with a machined full-length platform for the scale. The scale is from lifetime stainless steel fitted on its machined platform on the bed. Divided in mms to a length of 170cm. Accuracy of calibration +/-0.01%
Enquire Now

Share

Technical Specifications

  • Bench Bed:
    • Heavy cast iron with strong control ribs.
    • Thoroughly seasoned and aged before machining.
    • Total length: 180 cm with machined platform for lifetime stainless steel scale.
  • Carriages:
    • Five carriages provided for standard experimental accessories.
    • Machined and inter-ground surfaces ensure perfectly smooth sliding, eliminating lateral shift.
    • Stainless steel verniers provide readings up to 0.01 cm.
    • Bi-prism carriage includes fine cross motion read to 0.01 cm.
    • Clamping arrangements for secure positioning.
  • Standard Accessories on Carriages:
  1. Optical Slit
      • Manipulation of jaws free from spring action, ensuring long-term accuracy.
      • Adjustments:
        • Linear along the bed, read by vernier to 0.01 cm.
        • Fine vertical adjustment.
  1. Bi-Prism Holder (30 × 40 mm Bi-prism included)
      • Linear adjustment along the bed, vernier read 0.01 cm.
      • Fine vertical adjustment via slow motion screw.
      • Fine cross motion by micrometer screw, vernier reading 0.01 cm.
      • Quick and fine radial motion along the horizontal axis.
  1. Micrometer Eyepiece
      • Quick linear adjustment along the bed, vernier read 0.01 cm.
      • Fine micrometer vertical adjustment.
      • Micrometer cross motion along 30–0–30 mm scale, reading to 0.001 cm.
  1. Auto-Action Lens Holder
      • Automatic spring action for equal opening and closing.
      • Same fine adjustments as other carriages.
  1. Condensing Lens
      • Supplied with fifth rider for precise focusing of light.
  • Applications:
    • High-precision experiments with Bi-Prism interference, optical slits, and lenses.
    • Suitable for research and advanced laboratory demonstrations requiring accurate positioning and measurement.
