Portable Turbidity Meter Research Grade

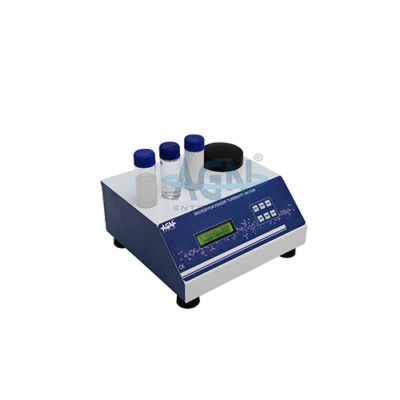

‹ Digital Potentiometer › Microprocessor Turbidity Meter

Categories: Analytical Equipments, Turbidity Meter

Model No: AGN-340

Portable Turbidity Meter Research Grade with a measurement range of 0 to 1100 NTU/FNU and resolutions of 0.01, 0.1, and 1. Accuracy is ±2% of reading for 0–500 NTU and ±3% for 501–1100 NTU. Supports 2 to 5 calibration points. Features an infrared-emitting diode light source (850 nm), silicon photodiode detector, and stray light <0.02 NTU. Can store up to 100 data sets and offers USB communication. Operates at 0–50°C (32–122°F) and can be stored at 0–60°C (32–140°F) with relative humidity <80% (non-condensing). Equipped with an LCD display for clear readings.

Technical Specifications

Portable Turbidity Meter (Research Grade) for precise turbidity measurement
Measurement range: 0 to 1100 NTU/FNU
Resolution:01, 0.1, 1 NTU/FNU
Accuracy: ±2% (0–500 NTU), ±3% (501–1100 NTU)
Calibration: 2 to 5 points for flexible operation
Light source: Infrared-emitting diode (850 nm wavelength)
Detector: Silicon photodiode
Stray light: <0.02 NTU for high accuracy
Memory storage: Up to 100 data sets
Communication: USB interface for data transfer
Operating temperature: 0–50°C (32–122°F)
Storage temperature: 0–60°C (32–140°F)
Relative humidity: <80% (non-condensing)
Display: LCD for easy reading
Compact, research-grade design suitable for field or laboratory use
