PENTA – HEAD MICROSCOPE

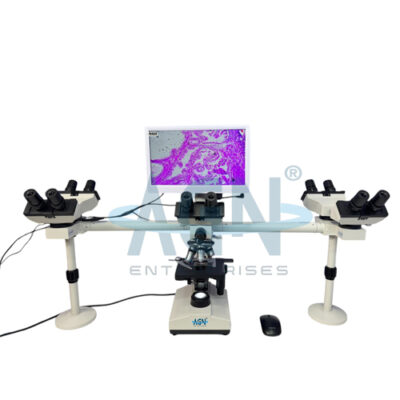

PENTA – HEAD MICROSCOPE

PENTA – HEAD MICROSCOPE

‹ PENTA – HEAD MICROSCOPE › PENTA HEAD MICROSCOPE

Categories: Microscopes, Multiviewing Microscopes

Model No: AGN-PH -777 PENTA

Magnification	40x-1000xfor visual observation.
Model Number	AGN-PH -777 PENTA
Brand	AGN
Observation Head	One number high transmission Trinocular head
Objectives	OVST, series Infinity Corrected DIN Plan Achromatic Long Working Distance objectives
Illumination	True Kohler illumination, Halogen Lamp 24V/100W with brightness controller.

Share

Technical Specifications

Optical System:

Infinity-corrected optical system.
Magnification range: 40× – 1000× for visual observation.

Observation Head:

One high-transmission trinocular head, 30° inclined, compensation-free, 360° rotatable.
Four compensation-free binocular heads, 45° inclined for multi-viewing.
Anti-fungal coated.

Eyepieces:

5 pairs of wide-field (WF) 10× eyepieces, F.O.V. 18 mm.
Diopter adjustment and anti-fungal coated.

Nosepiece:

Quadruple nosepiece turret (ball-bearing type) with rubber grip for smooth rotation.

Stage:

Double-plate mechanical stage, size 140 × 120 mm.
X/Y travel range: 100 × 60 mm.
Low-position right-hand movement controls.
Ceramic-coated surface for scratch resistance.
Double specimen holder clip.

Objectives:

OVST series infinity-corrected DIN Plan Achromatic long working distance objectives, anti-fungal coated.
4× (N.A. 1.25).

Condenser:

Abbe condenser NA 1.25 with iris diaphragm.
Blue daylight filter included.
Rack & pinion movement on stainless steel guides.

Illumination:

True Köhler illumination.
Halogen lamp 24V / 100W with brightness controller.

Coarse & Fine Focusing:

Coaxial coarse and fine focusing with roller guide for smooth operation.
Fine motion: 2 µm per rotation, maximum 2 µm scale increments.

LED Pointer:

Movable built-in green LED pointer with adjustable brightness.

Optional Accessories:

Micrometer reticules
Phase contrast, polarizing, fluorescence, and dark field kits
Cord hanger kit
Digital USB cameras (1.3MP, 3MP, 5MP) and digital cameras (14MP) with adapters
Digital SLR cameras with adapters
WF eyepieces 15× and 20×
