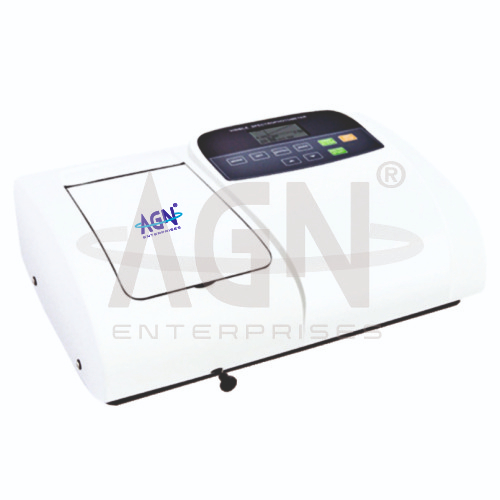

Microprocessor Spectrophotometer (Scanning Based) Single Beam

Model No: AGN-41
The Microprocessor Spectrophotometer (Scanning Based) Single Beam is a precision analytical instrument designed for quantitative and qualitative analysis in laboratories. It features a microprocessor-controlled system for enhanced accuracy and ease of use. The single beam optical design, combined with scanning capability across a wide wavelength range, allows for detailed spectral analysis. Ideal for applications in chemistry, biology, and environmental testing.

Shere

Technical Specifications

Microprocessor-Based Scanning Single Beam Spectrophotometer

Wavelength Range: 320–1020 nm
Optical System: Single Beam
Measurement Modes:

Absorbance

% Transmission

Concentration

K-Factor

Key Features:

Graphical LCD Display: Enables clear visualization of data and spectral scans.

Automatic Calculations: Includes onboard computation for concentration, %T, absorbance, and K-factor.

Sample Holder Compatibility: Accommodates glass cuvettes with path lengths ranging from 10 mm to 50 mm.

Data Storage: Unlimited sample data storage capability.

Printer Interface: USB interface for connecting to any compatible printer.

Included Accessories:

Software Package for data management and analysis.

Set of 4 Glass Cuvettes (10 mm path length).
