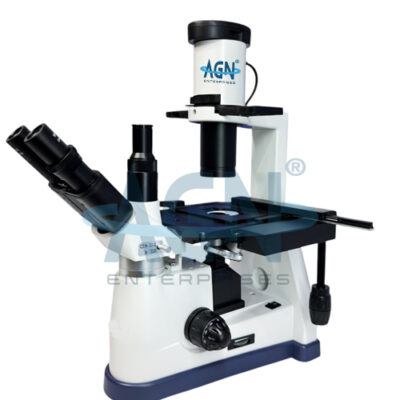

INVERTED TISSUE CULTURE MICROSCOPE

Product Description

The Inverted Tissue Culture Microscope from AGN Enterprises is designed for observing living cells, tissue cultures, and biological specimens in containers such as culture flasks, Petri dishes, and multi-well plates. Its inverted optical configuration places the objectives below the specimen, allowing users to examine samples through the transparent base of the culture vessel. Moreover, this arrangement makes the microscope suitable for routine cell culture observation without disturbing the specimen.

Inverted Tissue Culture Microscope Features

AGN Enterprises manufactures the microscope using high-quality optical and mechanical components to provide clear imaging and dependable laboratory performance. Furthermore, the ergonomic design allows convenient observation of cultured cells during routine laboratory work. The inverted configuration provides easy access to culture vessels while maintaining a suitable viewing position. Users can observe cell morphology, growth patterns, confluency, and changes in cultured samples with suitable illumination and magnification. In addition, the microscope supports teaching, research, and routine cell culture monitoring in biological laboratories.

Applications of Inverted Tissue Culture Microscope

The microscope is suitable for cell culture laboratories, biotechnology laboratories, microbiology departments, medical colleges, pharmaceutical research centers, and biological research institutes. In addition, researchers can use it for observing cell growth, tissue culture samples, cell morphology, and other specimens maintained in culture vessels. Universities and research organizations also use the microscope for practical demonstrations and laboratory training. Therefore, it provides a useful imaging platform for routine cell culture observation and biological research.

Why Choose AGN Enterprises

AGN Enterprises manufactures every Inverted Tissue Culture Microscope using carefully selected optical components and durable laboratory-grade materials. Our engineers inspect every unit before dispatch to ensure reliable operation and consistent imaging performance. Besides offering quality construction, we provide competitive pricing, customization options, prompt delivery, and responsive technical support. Finally, AGN Enterprises supplies dependable microscopy and laboratory equipment for educational, research, medical, biotechnology, and pharmaceutical institutions.

Optical System:

• Infinity-corrected optical system for clear and high-contrast imaging.

Stand:

• Single-mold, robust aluminum die-cast stand with anti-rust finish.

Viewing Head:

• Trinocular head, inclined at 30°, 360° rotatable.
• Interpupillary distance adjustable from 48–75 mm with diopter adjustment.

Eyepieces:

• Wide-field 10x with 22 mm FOV.
• ±5 diopter adjustment, antifungal and anti-reflection coated.

Nosepiece:

• Quintuple revolving nosepiece with click-stop mechanism and rubber grip.

Objectives:

• Long Working Distance (LWD) Plan objectives:
  • 4x/0.10
  • 10x/0.25 PH
  • 20x/0.50 PH
  • 40x/0.65 PH

Magnification Range:

• 40x to 400x.

Phase Contrast:

• Fixed and adjustable phase annuli for 10x, 20x, and 40x objectives.

Mechanical Stage:

• Graduated stage: 160 mm × 250 mm.
• X/Y travel range: 78 mm × 54 mm.
• Scratch-resistant surface with double specimen holder clips.

Focusing:

• Coaxial coarse and fine focusing.
• Fine adjustment scale: 0.002 mm per rotation.

Condenser:

• LWD 45 mm condenser, N.A. 0.35.
• Field diaphragm with pull-out filter socket.

Filters:

• Blue, green, and yellow glass filters included.

Illumination:

• 5W LED light (up to 100,000 working hours) with adjustable intensity.

Power Supply:

• Universal 110–240V with integrated voltage stabilizer.

Packaging:

• Inner thermocol/styrofoam packing with outer cardboard box for protection.
