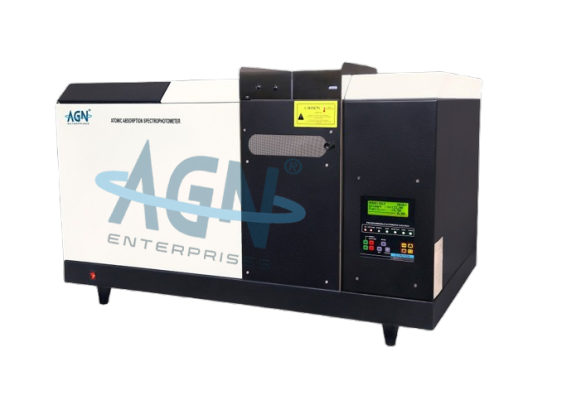

Atomic-Absorption-Spectrophotometer-Double-Beam

Atomic Absorption Spectrophotometer Single Beam

Categories: ,

Model No: AGN-2102
Double Beam Atomic Absorption Spectrophotometer (AAS) is an advanced analytical instrument designed for precise measurement of metal concentrations in various sample types. Utilizing atomic absorption principles, the system features high sensitivity, robust performance, and automated operations. It is suitable for applications in environmental analysis, clinical chemistry, food and beverage testing, metallurgy, and more.
Enquire Now

Shere

Technical Specifications

  • Optical System:
    • Monochromator: Ebert type
    • Grating: 1800 lines/mm holographic grating
    • Spectral Bandwidth (SBW): 0 to 2 nm
    • Wavelength Range: 190 – 900 nm
  • Lamp System:
    • Lamp Turret: 8-position turret for hollow cathode lamps
    • Lamp Power Supply: 8 independently modulated power supplies
    • Background Correction: Built-in system using high-intensity, high-speed Deuterium lamp
  • Calibration and Data Processing:
    • Automatic Calibration: Supports up to 10 standards
    • Recalibration: Possible with a single standard
    • Concentration Readout Modes:
      • K-Factor
      • Linear Regression
      • Quadratic Regression
    • Signal Display: BAR graph and numeric value
    • Measurement Modes: ABS, % Transmittance, and Concentration
    • Absorbance Range: 0 to 3.0 ABS
  • Burner and Flame System:
    • Burner Type: Titanium burner
    • Air-Acetylene Flame: 100 mm
    • Nâ‚‚O-Acetylene Flame: 50 mm
  • Nebulizer System:
    • Corrosion-resistant
    • Platinum-Iridium capillary
    • Impact bead for efficient aerosol generation
  • Included Accessories and Software:
    • Interface software for computer control and data acquisition
    • Gas cylinder and regulator
    • 3 standard hollow cathode lamps
    • Air compressor
