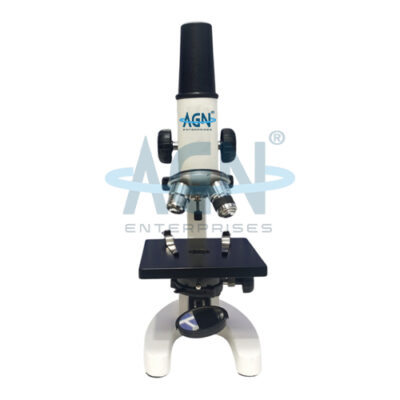

ADVANCE MEDICAL STUDENT MICROSCOPE

Optical System: Finite Optical System Stand:

• Aluminium die-cast, anti-rust body

Viewing Head:

• Monocular tube, 160mm length
• 45° inclined, 360° rotatable

Eye Guards:

• Adjustable rubber eye guards for comfortable viewing

Eyepieces:

• Wide Field 10x, F.O.V. 16mm
• Antifungal & anti-reflection coated

Nosepiece:

• Forward triple revolving nosepiece
• Click-stop mechanism with rubber grip

Magnification Range:

• 100x to 1000x

Objectives:

• Achromatic 10x/0.25
• Achromatic 40x/0.65 (SL)
• Achromatic 100x/1.25 Oil (SL)

Mechanical Stage:

• Single plate stage: 140mm × 140mm
• X/Y travel range: 70mm × 50mm
• High-quality stainless steel stage clips

Focusing System:

• Coarse adjustment: Rack & pinion mechanism
• Fine adjustment: Screw lever mechanism
• Vertical movement of observation tube

Condenser:

• Movable Abbe condenser N.A. 1.25
• Antifungal & anti-reflection, with aspheric lens
• Iris diaphragm
• Swing-in/out filter holder with frosted white/blue filter

Illumination:

• Plano-concave mirror or 1W LED light
• LED life up to 20,000 working hours

Power Supply:

• Universal power supply 110V–240V
• Integrated voltage flux stabilizer

Packaging:

• Inner thermocol/styrofoam protection
• Outer cardboard box
